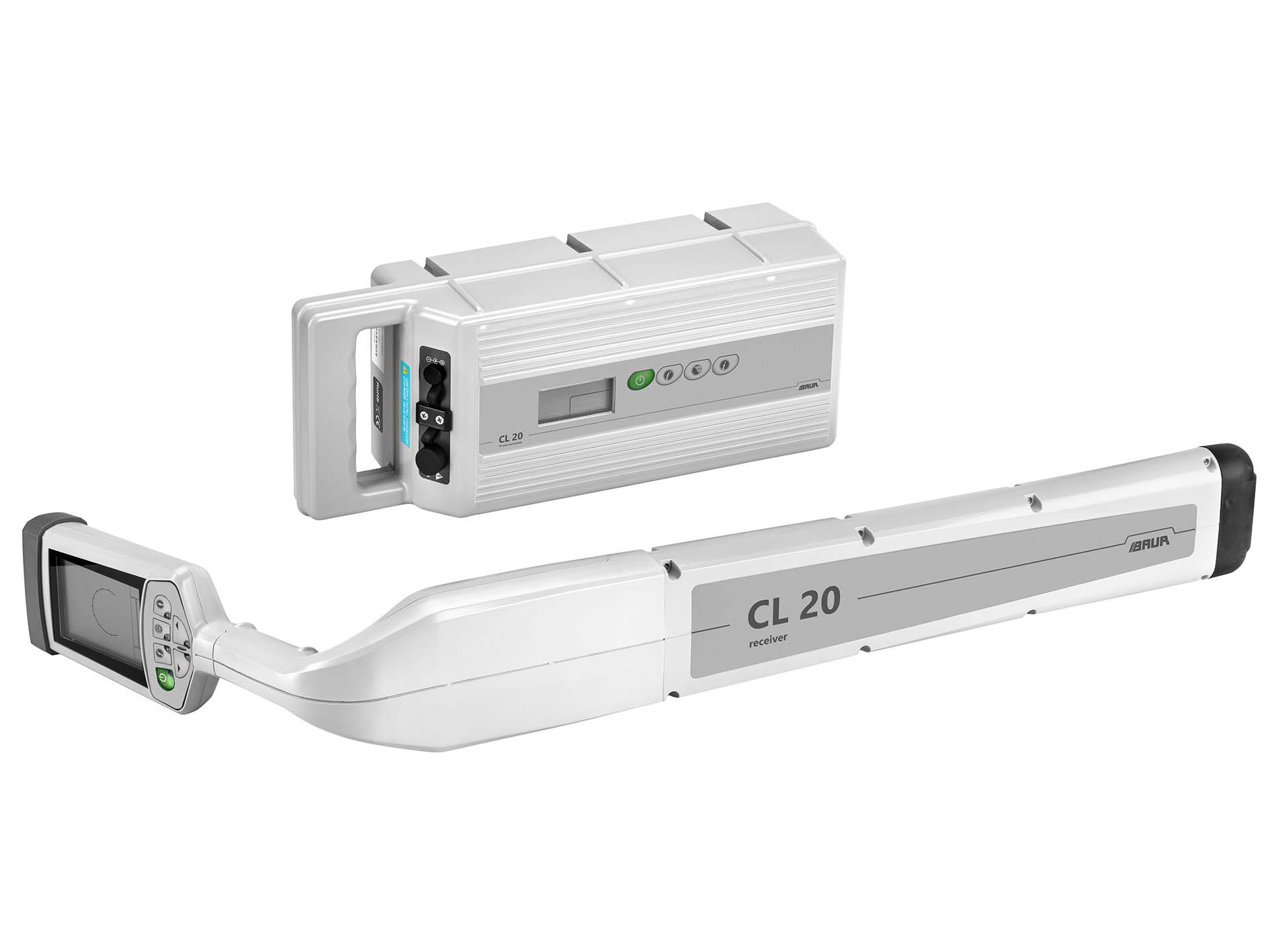

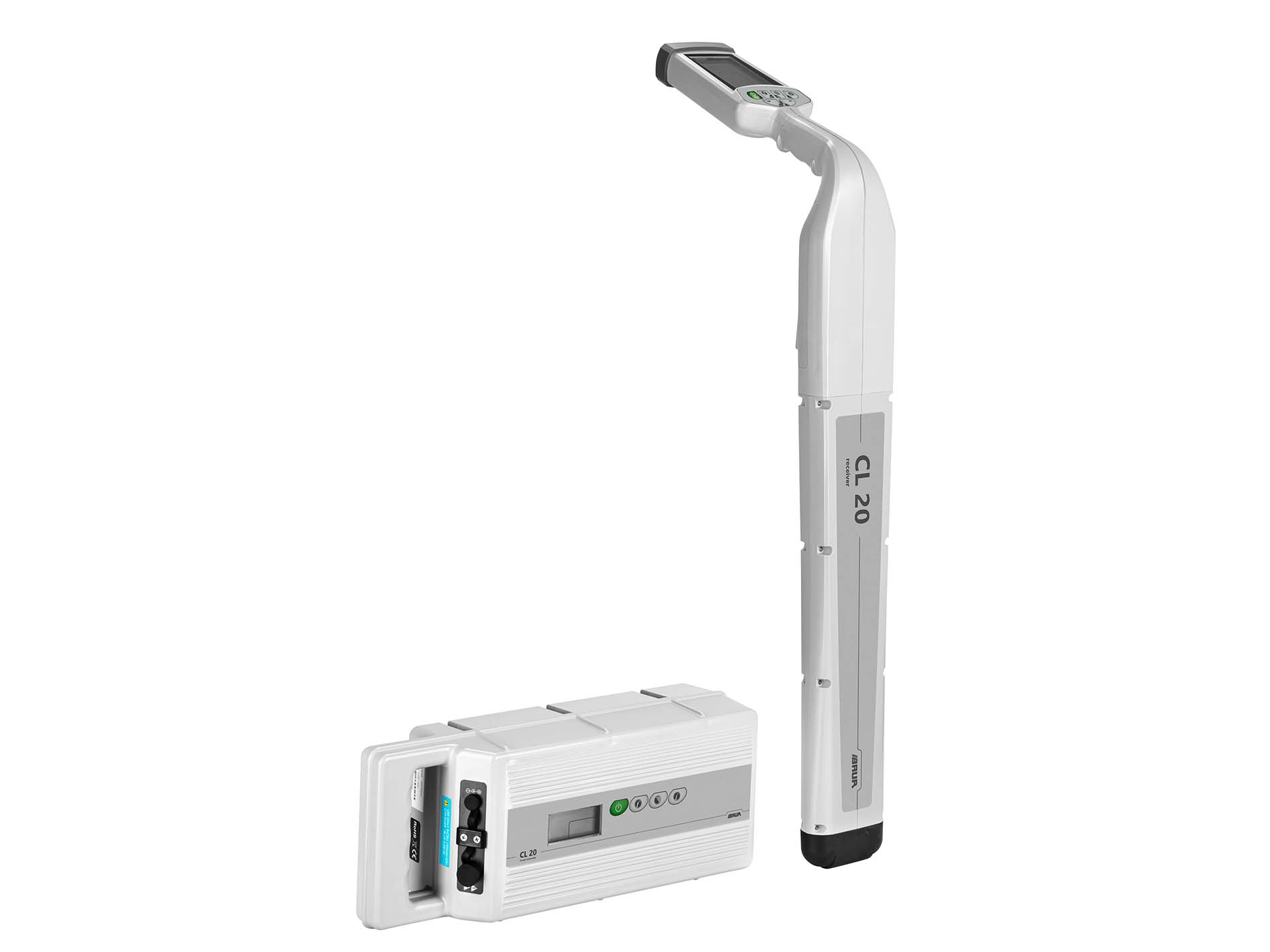

CL 20
BAUR cable locator
Simple, precise, economical
- Precision locating system for cables and pipes
- Advanced signal acquisition and filtering technology
- Intuitive operation – no special knowledge required
The CL 20 cable locator is used for route tracing, long runs of pipe and cable, as well as basic service lines.
Multiple active frequencies allow the user to accurately locate with a minimum of interference. Passive frequencies identify “live” and charged lines by their naturally occurring electromagnetic fields. The CL 20 offers multiple passive frequencies – 50 Hz, 60 Hz, Radio Frequency, Cathodic Protection Rectifier, CATV – allowing line locating without the use of a transmitter.

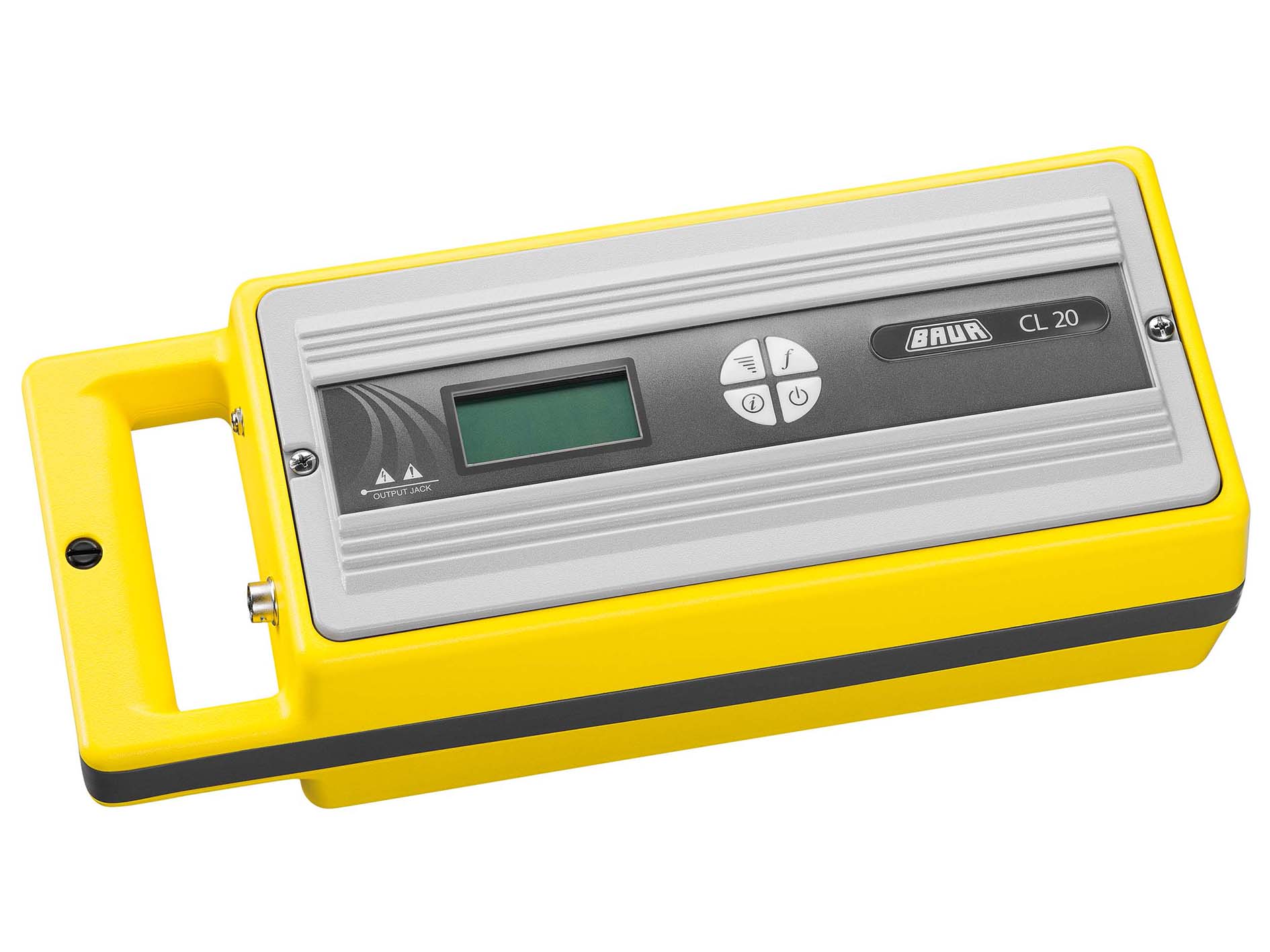

Updated transmitter functions include improved transmitter induction, multi-frequency coupled induction ranging from 8 kHz to 82 kHz, and automatic impedance matching for direct connections. The 10 watt transmitter has the ability to simultaneously apply two frequencies to a utility.

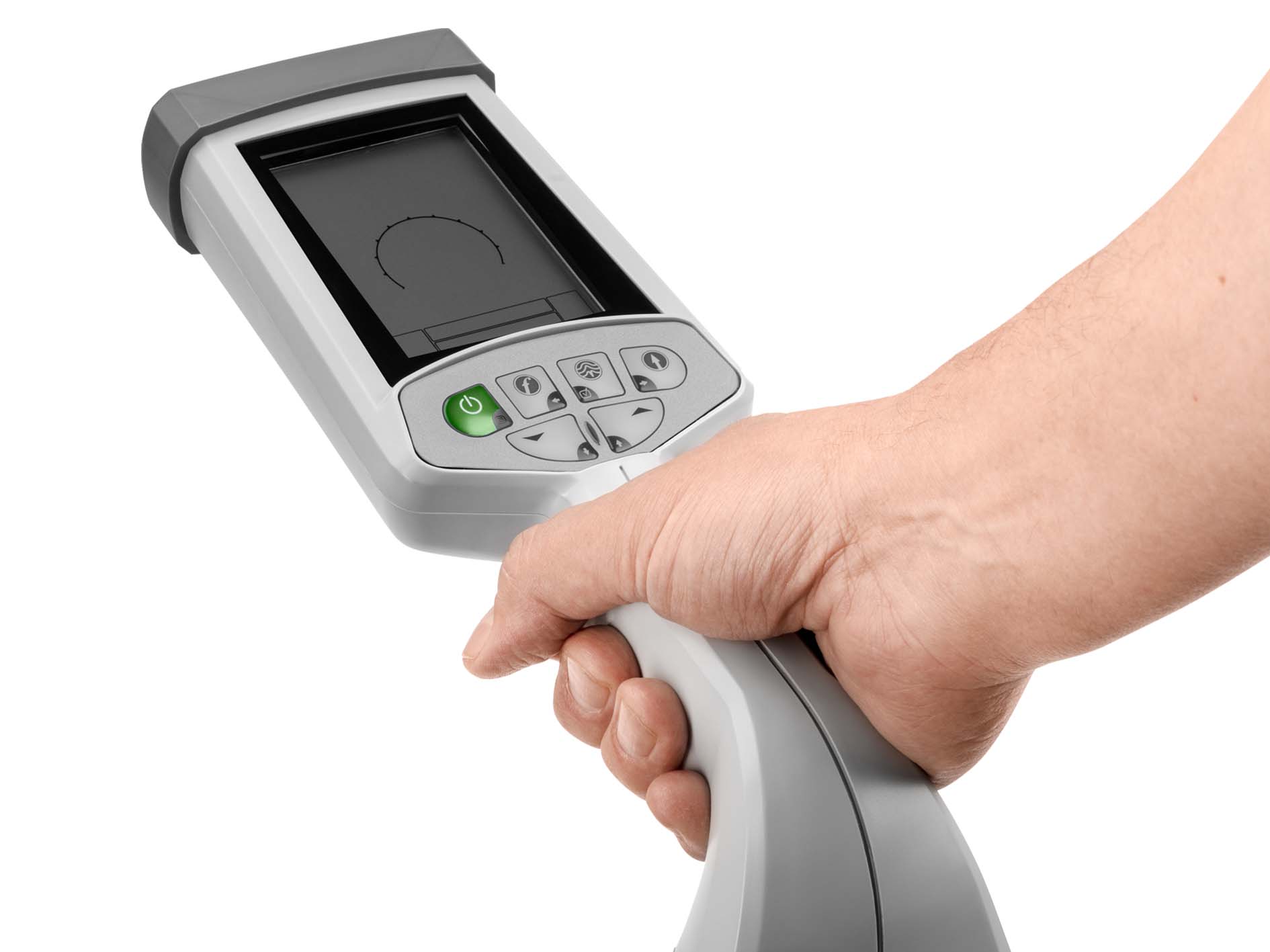

All functions are accessed via weather-proof membrane buttons and both user input and transmitter status are verified with audible responses.
